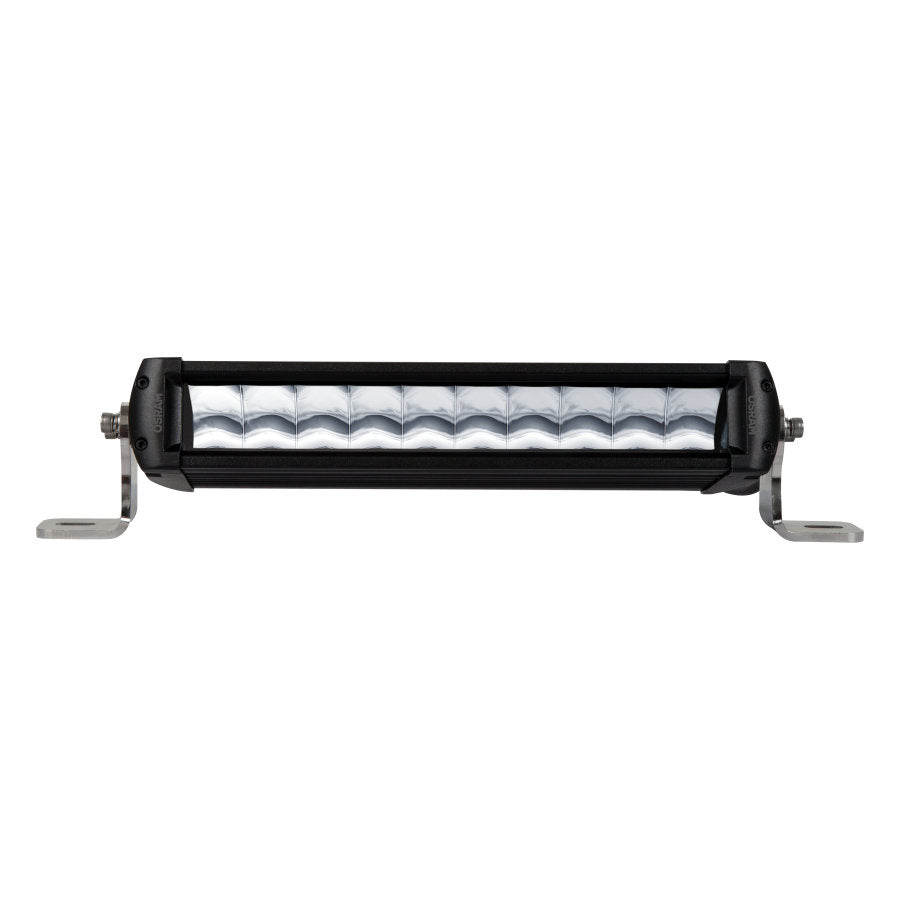

OSRAM LEDriving Lightbar FX250-CB (LEDDL103-CB)
Combo Beam Precision. Road-Legal Power. OSRAM Reliability.
The OSRAM LEDriving FX250-CB is a high-performance auxiliary LED lightbar engineered for drivers who demand both near-field and far-field illumination in a compact, road-approved form. With a powerful combo beam pattern and rugged design, it’s built to excel on and off the road.
🔧 Technical Specifications
-

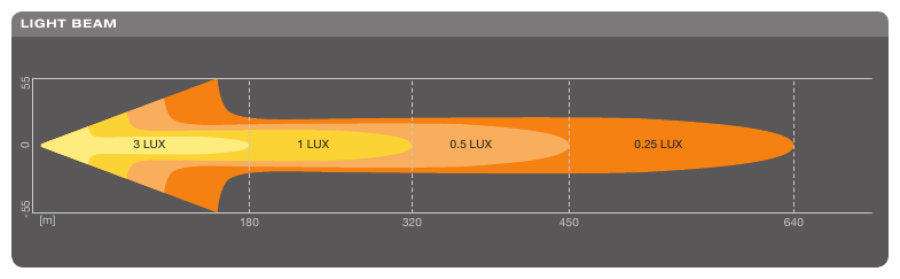

Light Distance: 640m @ 0.25 lux / 320m @ 1 lux
-
Brightness: 2700 lumens (hot)
-
Color Temperature: 6000K (cool white)
-
Beam Angle: 5°
-
Power Consumption: 35W
-
Operating Voltage: 12V / 24V
-
IP Rating: IP67 – Waterproof & dustproof
-
Lens Material: Unbreakable polycarbonate
-
Cable Length: 100cm
-
Weight: 1450g
-
ECE Compliance: R112 (Ref. 27.5) – Fully road legal
-
EMC/EMI Compliance: ECE R10
-
Protection Features: Polarity, over & under voltage protection
-
LEDs Used: 10x High-performance OSRAM LEDs
-
Warranty: 5-Year OSRAM Guarantee
🌟 Key Features
-
✅ ECE-Compliant High Beam – Legal for use on public roads
-
🔦 Combo Beam Pattern – Merges wide near-field and long-range visibility
-
🛡️ Tough Build Quality – Impact-resistant lens and robust housing for heavy-duty use
-
🔌 Integrated Driver & Thermal Management – Consistent performance, extended LED life
-
⚡ Safe & Stable – Voltage and polarity protection built in
-
📏 Compact Profile – Fits most vehicle setups with minimal space required
🚛 Ideal Applications
-
Cars & Pickups
-
4x4s & Off-Road Vehicles
-
Trucks & Commercial Fleets
-
Agricultural & Construction Equipment
-
ATVs, Caravans, Utility Vehicles
Enhance visibility and drive with confidence using the OSRAM LEDriving Lightbar FX250-CB — engineered for precision, safety, and performance.
💡 Recommended Accessory:
Use with the OSRAM Wire Harness AX 1LS for professional and secure installation.
