Technical Specifications LEDDL103-SP

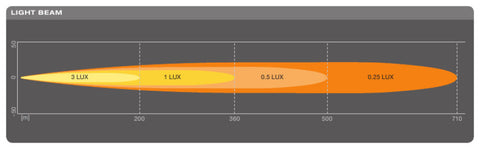

• Light distance 710m@0.25lux 360m@1lux
• Hot Lumen: 2700lm
• Color temperature: 6000K
• Beam angle: 5°
• Rated input power: 35W
• Input voltage: 12/24V
• IP Protection: IP67
• ECE: R112 (ECE Ref. 37,5)
• EMC/EMI: ECE R10
• Polarity protection
• Cable length: 100cm
• Weight: 1450g
Features
• Fully ECE compliant auxiliary high beam
• Spot beam pattern: improved far field illumination
• Increased road safety: Up to 710m@0.25lux light beam
with 5°beam angle
• Compact and robust: Unbreakable polycarbonate
lens to endure heavy duty application, over and
under voltage protection
• Integrated driver and thermal management
system for a superior lifetime
• 10 high performance OSRAM LED’s
• 5-year guarantee1)
Fields of application
Cars
Trucks
Commercial/construction vehicles
4x4
ATV
Agriculture
Caravans
High-performance LED auxiliary lights are permitted for use and improve visibility on roads
Not only does reliable and brilliant light improve visibility for drivers,

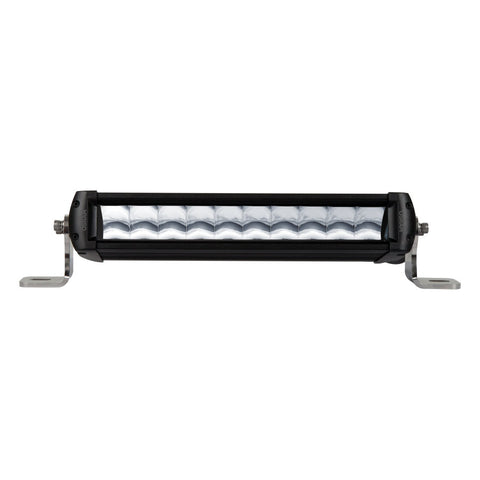

above all, it improves safety on the road. The LEDriving Lightbar FX250-SP automotive auxiliary
light gives drivers a powerful supplemental high beam that is approved for use on roads.
Even in difficult visibility conditions, the LED auxiliary light provides better perception of
oncoming traffic with ten high-performance LEDs and 2700 lumen. Along with improving one’s own
safety, it improves road safety overall
The OSRAM Wire Harness AX 1LS wire harness is recommended for use with this product
