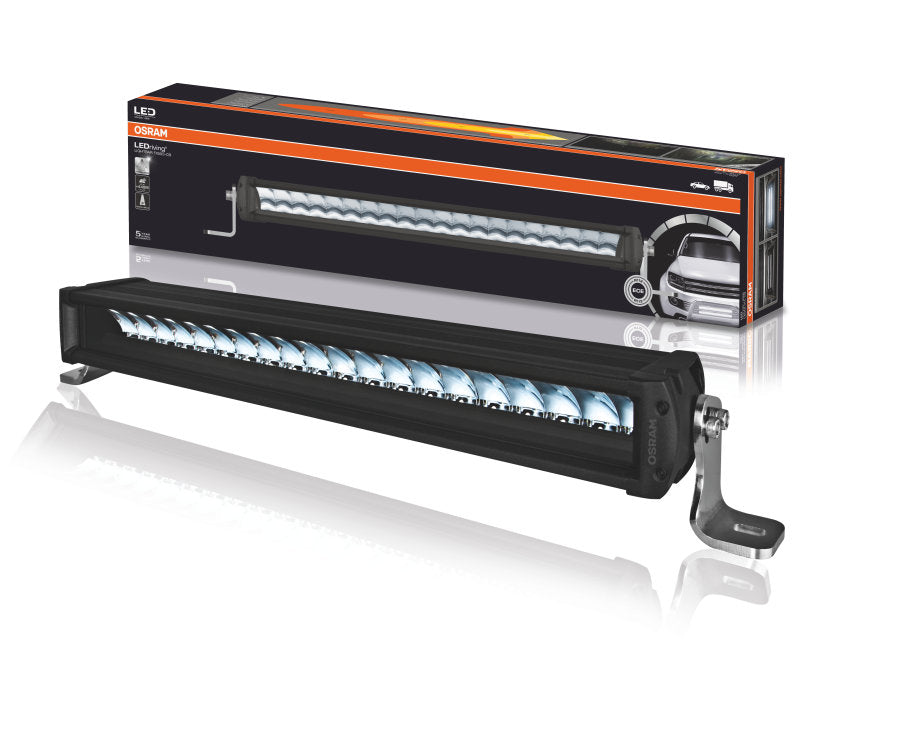

OSRAM LEDriving Lightbar FX500-CB (LEDDL104-CB)
Combo Beam Performance. Maximum Brightness. Road-Approved Power.
Delivering an impressive 5500 lumens and a light throw of up to 890 meters, the OSRAM FX500-CB is the ultimate LED lightbar for serious drivers. Its combo beam pattern combines wide near-field illumination with long-range spot performance — making it the perfect choice for both on-road safety and off-road adventure.
🔧 Technical Specifications
-

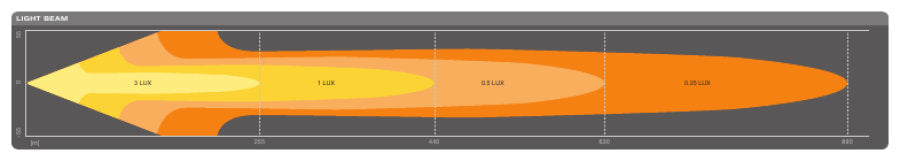

Light Distance: 890m @ 0.25 lux / 440m @ 1 lux
-
Brightness: 5500 lumens (hot)
-
Color Temperature: 6000K (cool white)
-
Beam Angle: 5°
-
Power Consumption: 68W
-
Input Voltage: 12V / 24V systems compatible
-
IP Rating: IP67 – Water and dust resistant
-
Lens: Unbreakable polycarbonate
-
Cable Length: 100cm
-
Weight: 2250g
-
ECE Compliance: R112 (Ref. 45) – Road legal auxiliary high beam
-
EMC/EMI Compliance: ECE R10
-
Protection Features: Over/under voltage & polarity protection
-
LEDs: 20x High-performance OSRAM LEDs
-
Warranty: 5-Year OSRAM Guarantee
🌟 Key Features
-
✅ ECE Approved Combo Beam – Road-legal auxiliary high beam with both wide and long-range lighting
-
🔦 Dual Function Beam Pattern – Seamlessly combines near-field spread and far-field reach
-
🛡️ Built to Last – Sealed to IP67 and built with a shatterproof lens for harsh environments
-
❄️ Smart Thermal Management – Integrated driver and heat regulation for optimal performance
-
⚡ Reliable Protection – Polarity and voltage safeguards to ensure consistent output
-
🚗 Universal Use – Compatible with 12V/24V systems for cars, trucks, and utility vehicles
🚜 Ideal Applications
-
Cars & Bakkies
-
4x4 & Off-Road Vehicles
-
Trucks & Commercial Fleets
-
Agricultural & Construction Machinery
-
ATVs, UTVs & Caravans
🔌 Recommended Accessory
Pair with the OSRAM Wire Harness AX 1LS for safe, secure, and professional installation.
