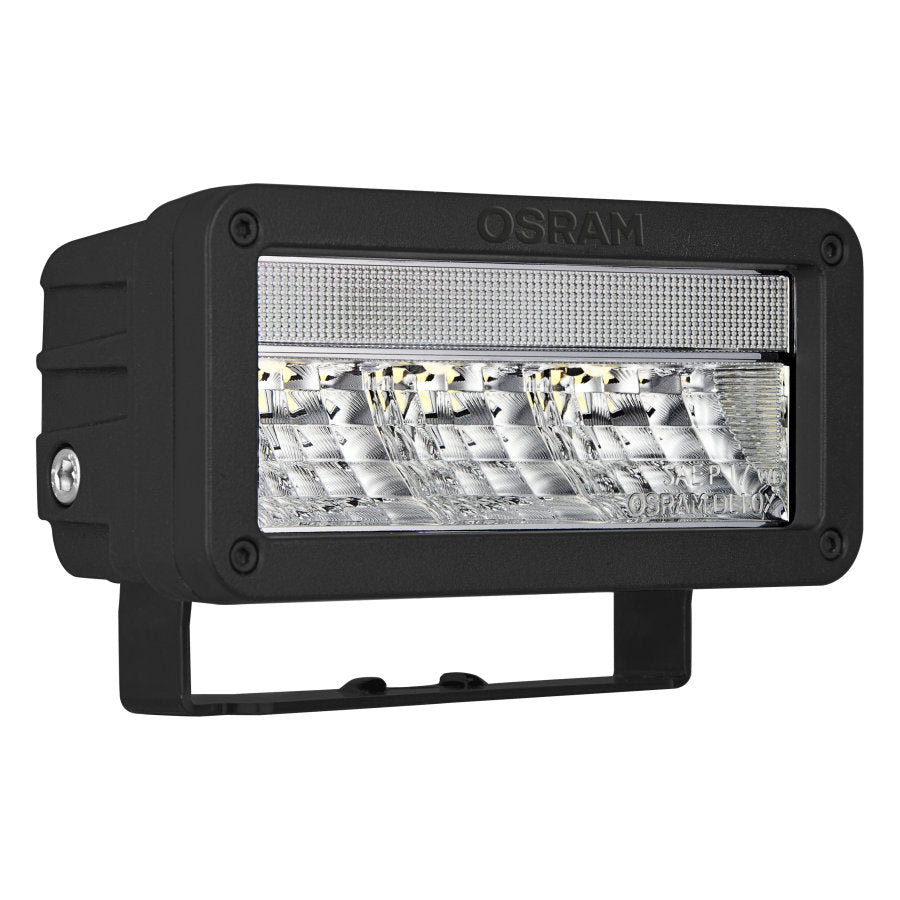

OSRAM LEDriving Lightbar MX140-WD (LEDDL102-WD)
Wide Beam. Compact Power. All-Terrain Ready.
The OSRAM MX140-WD LED lightbar is built to deliver a powerful, wide-angle beam in a compact and rugged housing. Designed for 12V and 24V systems, it offers dual lighting functions—high beam and position light—in a fully ECE-compliant format. Perfect for a wide variety of vehicle types and terrains.
✅ Key Technical Specifications
-
Light Distance: 120m @ 0.25 lux / 60m @ 1 lux
-
Hot Lumen Output: 2000lm
-
Color Temperature: 6000K (cool white)
-
Beam Angle: 45° (wide flood beam)
-
Rated Input Power: 30W (main beam) / 2W (position light)
-
Input Voltage: 12/24V compatible
-
Ingress Protection: IP67 (dust and water-resistant)
-
ECE Approvals:
-
R112 (Ref. 10) – Auxiliary high beam
-
R7 – Position light
-
-
EMC/EMI: Certified to ECE R10
-
Polarity Protection: Yes
-
Cable Length: 50cm
-
Weight: 750g
💡 Top Features
-
Dual Lighting Functions: Fully ECE-compliant high beam and front position light
-
Compact with Punch: Wide-angle 45° beam for broader field visibility
-
Rugged Design: Shatter-proof polycarbonate lens and weather-resistant build for harsh environments
-
Intelligent Protection: Over/under-voltage and polarity protection
-
Built-in Driver & Thermal Management: Prolongs performance and lifespan
-
3 High Performance OSRAM LEDs – Reliable and efficient
-
5-Year OSRAM Guarantee – Confidence built-in
🚗 Recommended Applications
-
Passenger Vehicles
-
Off-Road & 4x4 Vehicles
-
Trucks & Commercial Fleets
-
Agricultural Machinery
-
Construction Equipment
-
ATVs & Utility Vehicles
-
Caravans and Motorhomes
🌍 Versatile Performance Across All Terrains
The MX140-WD’s wide beam and 2000 lumens of brightness make it ideal for navigating farms, job sites, and rural roads. It enhances both driver vision and vehicle visibility, boosting safety for all around.
🔌 Recommended Installation Accessory:
Pair with the OSRAM AX 2LS Wire Harness for easy, safe, and reliable installation.
