Technical Specifications LEDDL110-CB
Light distance 680m@0.25lux 320m@1lux
Hot Lumen: 2700lm
Color temperature: 6000K
Rated input power: 45/1W
Input voltage: 12/24V
Lifetime: 5.000h
IP Protection: IP69K
ECE: R7, R112 (Ref. No. 30)
EMC/EMI: ECE R10
Ambient temperature: -40°C to 85°C
Cable length: 100cm
Weight: 2021g
Features
Fully ECE compliant auxiliary high beam and
position light ECE R112/ R72)
Light range: up to 680m@0.25lux
Combo beam (CB) pattern: improved far & near
field illumination
Robust & Resistant: Shatter proof polycarbonate
lens to endure heavy duty application
Over and under voltage protection
Integrated driver and thermal management
system
Long-life high-performance LEDs
5-year guarantee1)
Fields of application
Cars
Trucks
Commercial/Construction vehicles
4x4
ATV
Agriculture
Caravans

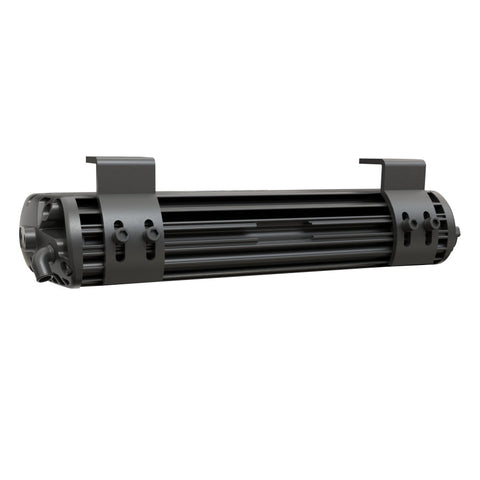

OSRAM LEDriving Lightbar MX250-CB. With its 26 powerful, high-performance long-life LEDs,
the OSRAM LEDriving Lightbar MX250-CB has a range of up to 680 meters and thus offers the
driver impressive foresight on-road and off-road. Even in dim light and reduced visibility
due to external environmental influences, the OSRAM LEDriving Lightbar MX250-CB with up to
6000 Kelvin can provide conditions similar to daylight. The power package with up to
2700 lumens of luminosity scores with highest optical efficiency and homogeneous light distribution.
This results in the possibility of an improved view for you and the improved visibility of your
vehicle by other road users, and consequently also increased safety on-road and off-road.
The OSRAM Wire Harness AX 1LS wire harness is recommended for use with this product
