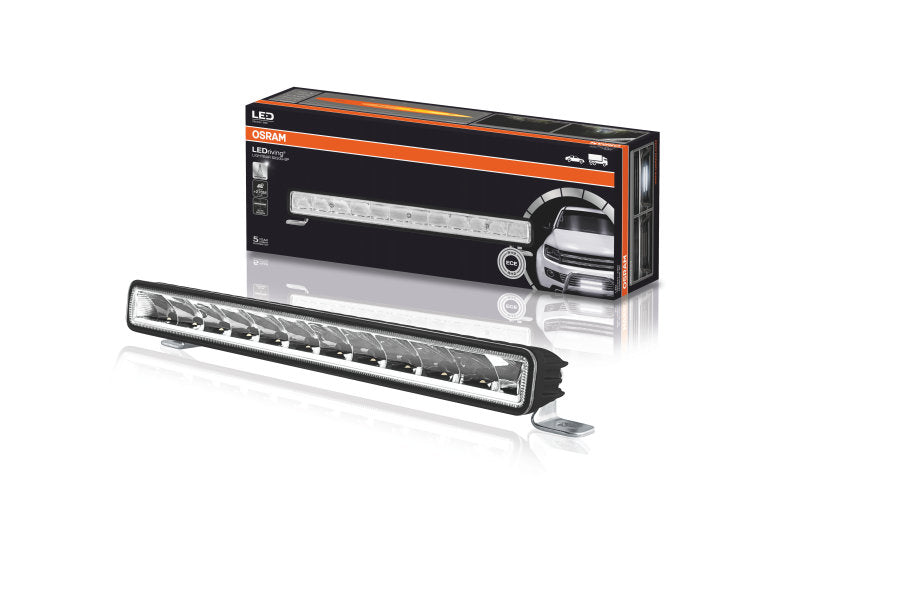

OSRAM LEDriving Lightbar SX300-SP (LEDDL106-SP)
Vibrant LED Light for More Safety on the Road
Unlit streets, off-road trails, and rural paths pose a greater risk to drivers and vehicles. The OSRAM LEDriving Lightbar SX300-SP is engineered to enhance visibility, boost safety, and deliver rugged durability under the harshest conditions.
✅ Key Technical Specifications
-
Light Distance: 540m @ 0.25 lux / 270m @ 1 lux
-
Hot Lumen Output: 2600lm
-
Color Temperature: 6000K (Cool White)
-
Beam Angle: 8° (focused high beam)
-
Rated Input Power: 29W
-
Input Voltage: 12/24V compatible
-
Lifetime: 5,000 hours
-
Ingress Protection: IP69K (dustproof & high-pressure waterproof)
-
EMC/EMI: Certified to ECE R10
-
ECE Compliant: R112 (Ref. 20) – road legal in many regions
-
Vibration Tested: IEC 60068-2-6 certified
-
Ambient Operating Range: -30°C to +60°C
-
Cable Length: 45cm
-
Weight: 700g
💡 Top Features
-
Fully ECE-Compliant High Beam – Legal for on-road use in compliant regions
-
Compact & Powerful – 12 high-performance OSRAM LEDs with integrated driver and thermal management
-
Unbreakable Lens – Heavy-duty polycarbonate lens resists shocks, impacts, and harsh environments
-
Smart Electronics – Includes over/under-voltage protection for consistent operation
-
Slim Profile – Allows flexible installation on cars, trucks, and specialty vehicles
-
Beam Distance of up to 540m – Spot-style 8° beam ensures long-range clarity
-
5-Year OSRAM Guarantee – Long-lasting peace of mind
🚗 Recommended Applications
-
Passenger Cars
-
Trucks & Trailers
-
Off-Road Vehicles (4x4, ATVs)
-
Agricultural Machinery
-
Construction & Utility Vehicles
-
Caravans and RVs
🔌 Recommended Accessory:
For safe and optimal installation, we recommend using the OSRAM AX 1LS Wire Harness, specifically designed for single LED lightbar setups.
