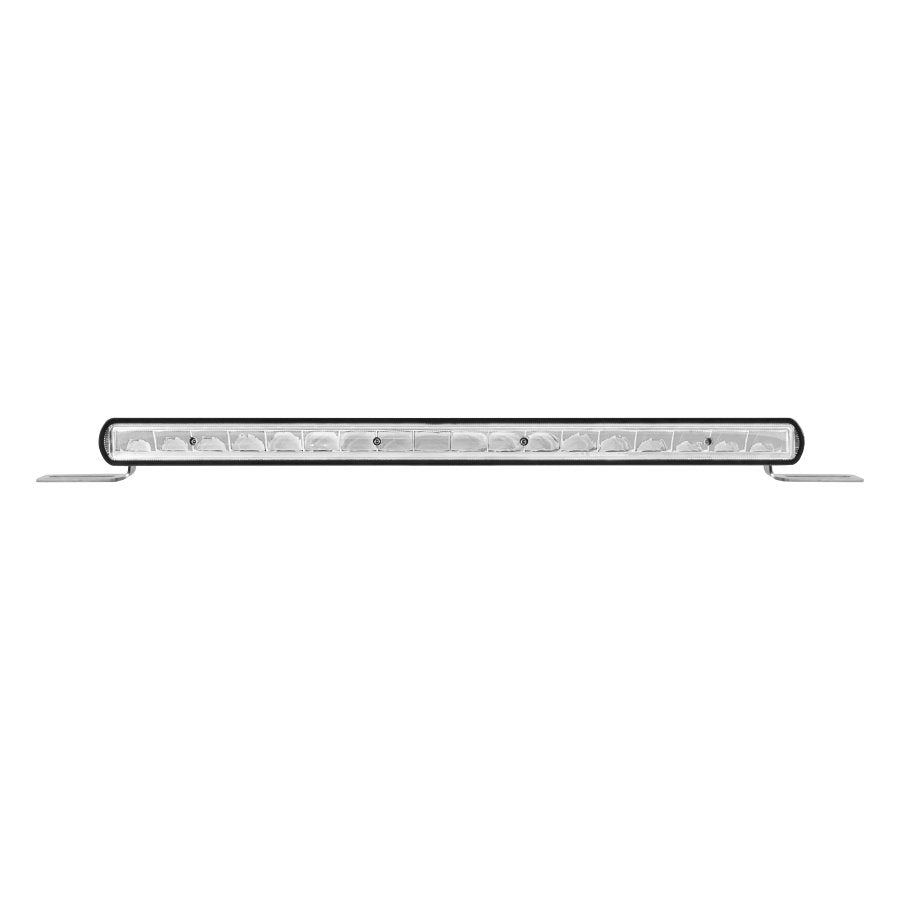

OSRAM LEDriving SX500-SP – High-Performance Spot Beam LED Lightbar
Key Features:
💡 18 high-performance OSRAM LEDs – delivers up to 3,900 hot lumens

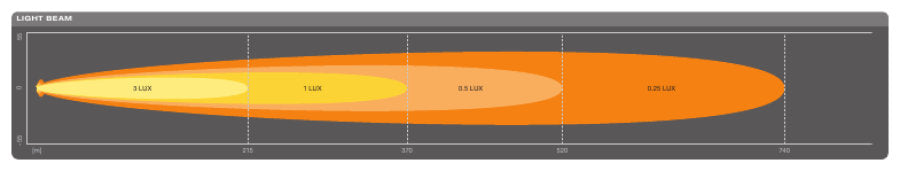

🔦 Spot beam with an ultra-long 740m range @ 0.25 lux (370m @ 1 lux)
📐 8° beam angle – focused and narrow for maximum distance
❄️ 6000K cool white – daylight-style lighting for optimal visibility
🛠️ Compact & robust design – unbreakable polycarbonate lens and compact housing
💧 IP69K-rated – fully resistant to water, dust, mud, and high-pressure washing
🔥 Integrated driver & thermal management system – ensures long life & reliable operation
⚡ Over & under voltage protection – protects your system from damage
✅ ECE Approved – fully compliant (ECE R112, Ref. 30; EMC/EMI: ECE R10)
📏 Cable length: 45 cm
🛡️ 5-Year OSRAM Guarantee
Product Description:
See farther. Drive safer.
The OSRAM LEDriving SX500-SP is a fully road-legal auxiliary LED lightbar designed for long-distance visibility with exceptional precision. Engineered with 18 premium OSRAM LEDs, this lightbar delivers a tight 8° beam angle and projects light up to an impressive 740 meters at 0.25 lux—giving you the foresight you need when it matters most.
Rated at 3,900 lumens, the SX500-SP is perfect for dark rural roads, off-road trails, and unlit environments where reliable illumination is key to performance and safety. Its cool white 6000K output mimics natural daylight, enhancing contrast, reducing fatigue, and helping you react faster.
With its unbreakable polycarbonate lens, vibration resistance (IEC 60068-2-6 certified), and IP69K protection, this compact unit is made to withstand extreme environments, from rain and dust to high-pressure washes and rough terrain. The integrated driver and thermal control system optimize LED life and protect against overheating.
Whether you're upgrading your truck, 4x4, utility vehicle, or agricultural machine, the SX500-SP delivers outstanding value, durability, and style—all backed by OSRAM's 5-year guarantee.
Technical Specifications (LEDDL107-SP):
-
Light distance: 740m @ 0.25 lux / 370m @ 1 lux
-
Hot Lumen Output: 3,900 lm
-
Color Temperature: 6000K
-
Beam Angle: 8°
-
Rated Input Power: 46W
-
Input Voltage: 12V / 24V
-
Lifetime: 5,000 hours
-
IP Rating: IP69K
-
ECE Certification: R112 (Ref. 30), R10
-
Vibration Resistance: IEC 60068-2-6
-
Operating Temp: -30°C to +60°C
-
Cable Length: 45cm
-
Weight: 1.2 kg
-
Warranty: 5 Years
Recommended Use Cases:
-
🚗 Cars & SUVs
-
🚛 Trucks & Commercial Vehicles
-
🚜 Construction & Agricultural Equipment
-
🚙 4x4s & ATVs
-
🚐 Caravans & Utility Vehicles

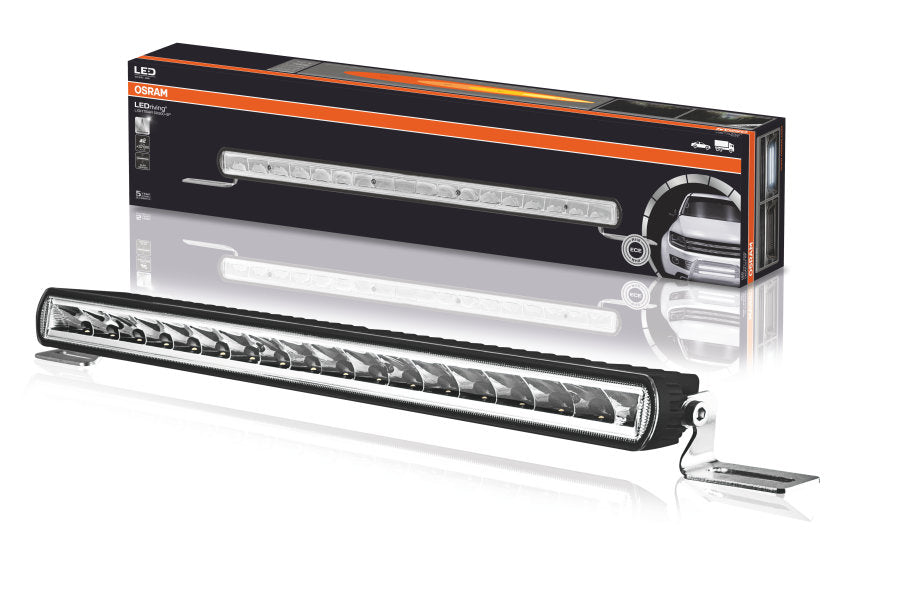

What's in the Box:
-
1 x OSRAM LEDriving SX500-SP LED Lightbar
-
Mounting brackets & hardware
-
Installation guide
🔌 Recommended Accessory:
We strongly recommend pairing this lightbar with the OSRAM AX 1LS Wire Harness for seamless installation, proper relay & fuse protection, and switch control.
